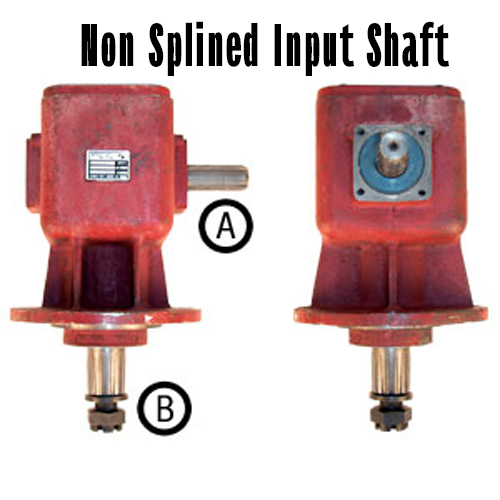

New Comer Gearbox, LF-140J. The gearbox ratio is 1:1.93. The input shaft is 1-3/8" round bore. The output shaft has tapered splines, bushing must be ordered separately (15 spline bushing A-U0139700000). The mounting pattern is 203.2 mm. The gearbox is rated at 60 hp at 540 rpm and has a CCW (Counter clockwise) rotation. Fits Comer Rotary Cutters.
• Output shaft has tapered splines, bushing must be ordered separately. (15 spline bushing: U0139700000). Mounting pattern is 203.2mm.
Horse Power 60
Input 540
Input Shaft (A) 1 3/8" round bore
Output Shaft (B) 15 spline
Ratio 1 : 1.93
Replaces Comer Part No: U914080300
Rotation CCW
mega-cross: (1 to 6 of 6)
Replaces: U9.116.802.00 COMER
U9.140.803.00 COMER
U911680200 COMER
9.116.102.10 COMER
911610210 COMER
Crossed From: SW06568 A & I MEGA-CROSS
Comer ROTARY CUTTER: LF-140J
