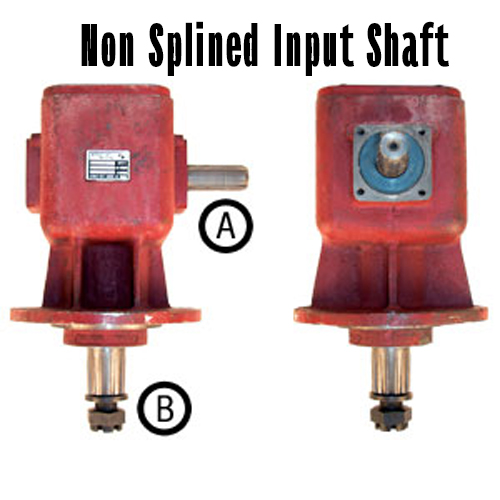

| New Comer Gearbox, LF-140J. The gearbox ratio is 1:1.93. The input shaft is 1-3/8" round bore. The output shaft has tapered splines, bushing must be ordered separately (15 spline bushing A-U0139700000). The mounting pattern is 203.2 mm. The gearbox is rated at 60 hp at 540 rpm and has a CCW (Counter clockwise) rotation. Fits Comer Rotary Cutters. |
| • Output shaft has tapered splines, bushing must be ordered separately. (15 spline bushing: U0139700000). Mounting pattern is 203.2mm. |
| Horse Power |
60 |
| Input |
540 |
| Input Shaft (A) |
1 3/8" round bore |
| Output Shaft (B) |
15 spline |
| Ratio |
1 : 1.93 |
| Replaces |
Comer Part No: U914080300 |
| Rotation |
CCW |
| mega-cross: |
(1 to 6 of 6) |
|
|
|
|
|
| |
Replaces: |
U9.116.802.00 |
COMER |
| |
|
U9.140.803.00 |
COMER |
| |
|
U911680200 |
COMER |
| |
|
9.116.102.10 |
COMER |
| |
|
911610210 |
COMER |
| |
Crossed From: |
SW06568 |
MEGA-CROSS |
|
