3 point conversion hitch for Allis Chalmers. Mounts to drawbar to maintain traction boost. May require drilling of 1 hole in drawbar in some models. This is a heavy duty hitch that does not use chains, but instead uses a swayblock. Both upright arms include leveling adjusters. Does not require snap-coupler as it mounts to your existing drawbar. This is a great way to convert if your tractor is setup for snap coupler or pin hitch.
Drawbar, drawbar support, toplink and bracket not included, but available on this site.
Category II.

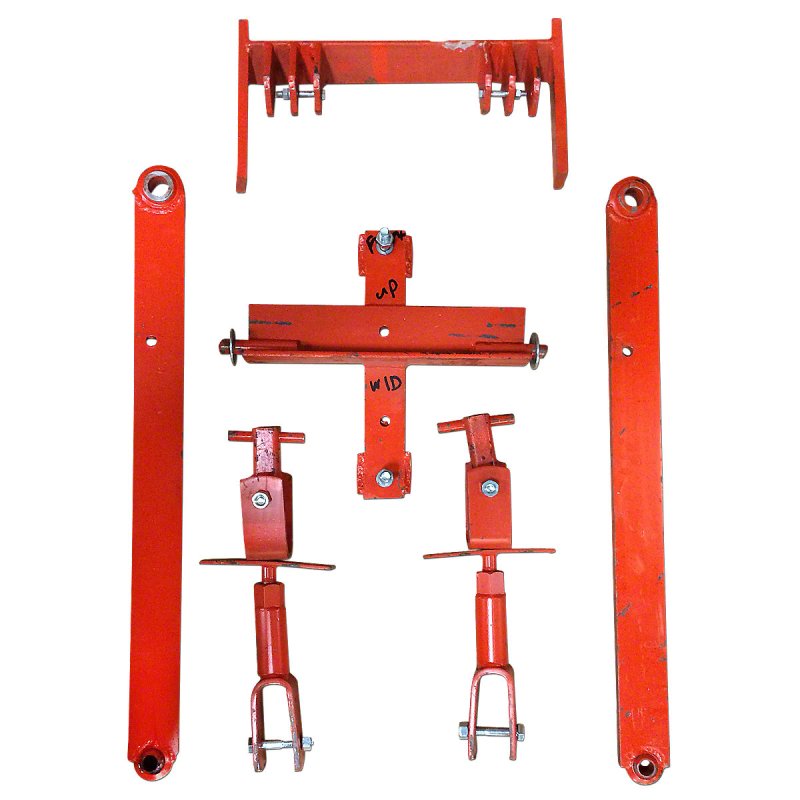

Includes:
Mainframe that bolts to the drawbar
2 Lift arms (tugs)
2 Leveling Arms
Swayblock
Wieght 115 lbs
NOTE: Top-most section of leveling arms may be unbolted for those tractors that do not have the quick release hoods. The included bolt will fit the hole in your existing lift arms
Click for larger Photo

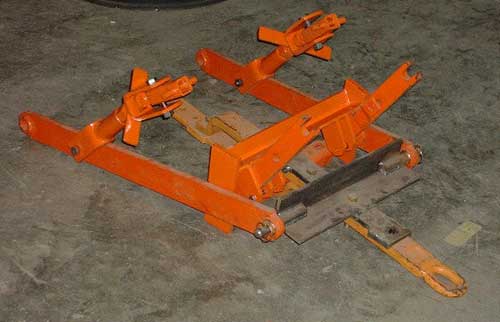

On models utilizing the drawbar guide and clamp the new mainframe will sandwich between the drawbar and the guide.
Click either Photo for detail of Swayblock Installation
All of our hitches and rims are shipped unboxed meeting UPS requirements since the boxes are typically ruptured due to the weights and shapes of the items. Please know that it is common for UPS to scratch the paint during shipment. We have worked with UPS to determine the best methods, but the scratches are inevitable. UPS will not insure against this. We also recomend customers expect to repaint if they are wanting a show finish or exact paint color match is required.
Click here for photos of the factory!
We have proudly used and sold this hitch for since the year 2000 and installed many for our customers. We are happy to explain any questions as we have intimate knowledge of this hitch.
