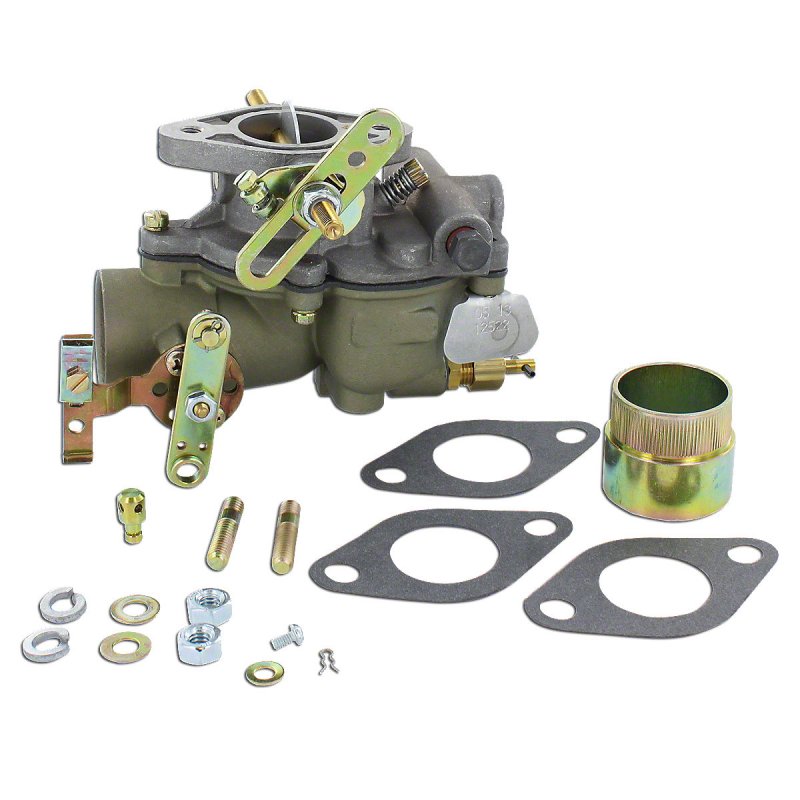

- New, universal Zenith replacement.
- External appearance may vary from original carburetor.
- 2-5/16" to 2-3/8" CC stud holes (Because of the smaller diameter studs that are included)
- 4.88" throttle shaft length
- 1-1/8" throttle bore
- For some applications you may need to trim the length of the throttle shaft to clear the block or reuse old throttle / choke linkage.
Larger engines (201cu in and 226 cu in) will have reduced power due to smaller throat diameter.
TSX114,Marvel Schebler
TSX120,Marvel Schebler
TSX138,Marvel Schebler
TSX154,Marvel Schebler
TSX155,Marvel Schebler
TSX156,Marvel Schebler
TSX157,Marvel Schebler
TSX159,Marvel Schebler
TSX171,Marvel Schebler
TSX188,Marvel Schebler
TSX198,Marvel Schebler
TSX21,Marvel Schebler
TSX231,Marvel Schebler
TSX233,Marvel Schebler
TSX248,Marvel Schebler
TSX253,Marvel Schebler
TSX272,Marvel Schebler
TSX28,Marvel Schebler
TSX30,Marvel Schebler
TSX312,Marvel Schebler
TSX333,Marvel Schebler
TSX34,Marvel Schebler
TSX359,Marvel Schebler
TSX36,Marvel Schebler
TSX380,Marvel Schebler
TSX400,Marvel Schebler
TSX403,Marvel Schebler
TSX405,Marvel Schebler
TSX406,Marvel Schebler
TSX418,Marvel Schebler
TSX42,Marvel Schebler
TSX43,Marvel Schebler
TSX447,Marvel Schebler
TSX470,Marvel Schebler
TSX472,Marvel Schebler
TSX474,Marvel Schebler
TSX486,Marvel Schebler
TSX507,Marvel Schebler
TSX513,Marvel Schebler
TSX541,Marvel Schebler
TSX55,Marvel Schebler
TSX60,Marvel Schebler
TSX635,Marvel Schebler
TSX665,Marvel Schebler
TSX668,Marvel Schebler
TSX670,Marvel Schebler
TSX69,Marvel Schebler
TSX701,Marvel Schebler
TSX730,Marvel Schebler
TSX74,Marvel Schebler
TSX815,Marvel Schebler
TSX827,Marvel Schebler
TSX88,Marvel Schebler
TSX90,Marvel Schebler
TSX926,Marvel Schebler
TSX936,Marvel Schebler
TSXU830,Marvel Schebler
TSX186,Marvel Schebler
10514,Zenith
11115,Zenith
11141,Zenith
11142,Zenith
12115,Zenith
12122,Zenith
12225,Zenith
12262,Zenith
12285,Zenith
12401,Zenith
12475,Zenith
12522,Zenith
12749,Zenith
12773,Zenith
12911,Zenith
13873,Zenith
14544,Zenith
16232,Zenith
3199,Zenith
9667,Zenith
9705,Zenith
9706,Zenith
9707,Zenith
9749,Zenith
9752,Zenith
9797,Zenith
9804,Zenith
|
