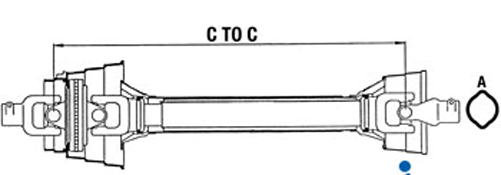

Complete Constant Velocity Driveline. C-to-C length: 48" (1210 mm). Tractor end: 1-3/8" 6 Spline. Implement end: 1-3/8" 21 Spline. Lemon style tube, type A. For 2480 series. Fits John Deere Rotary Cutters; Walterscheid WWE series.
• Original Walterscheid part.
• It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
C to C Max 1828 MM/ 72"
C to C Min 1210 MM/ 48"
Implement 1 3/8"-21
Replaces W248012100102
Size 2480
Total Length -
Tractor 1 3/8"-6
Tube Style A
mega-cross: (1 to 8 of 8)
Replaces: A-BW14494 JOHN DEERE
WC484812A DRIVELINE
W248012100102 DRIVELINE
W248012100102-A DRIVELINE
A-212051 DRIVELINE
A-87055907 DRIVELINE
Crossed From: BW14209 JOHN DEERE
BW14209 JOHN DEERE
Driveline (by application) > CV Driveline Assembly
John Deere ROTARY CUTTER: 1008
John Deere ROTARY CUTTER: 1018
John Deere ROTARY CUTTER: 1418
Driveline > CV Driveline Assembly
Walterscheid WWE Series: 2480
